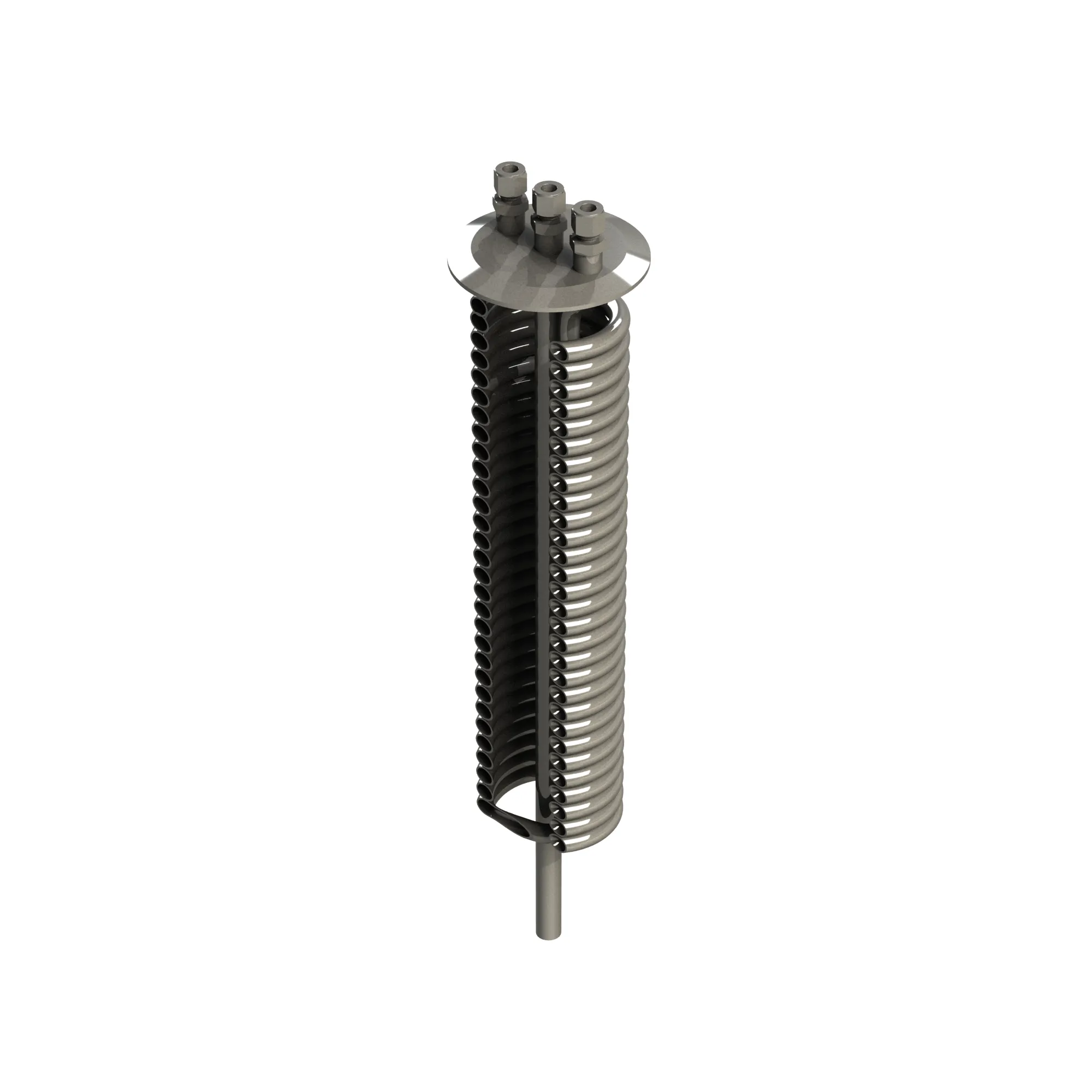

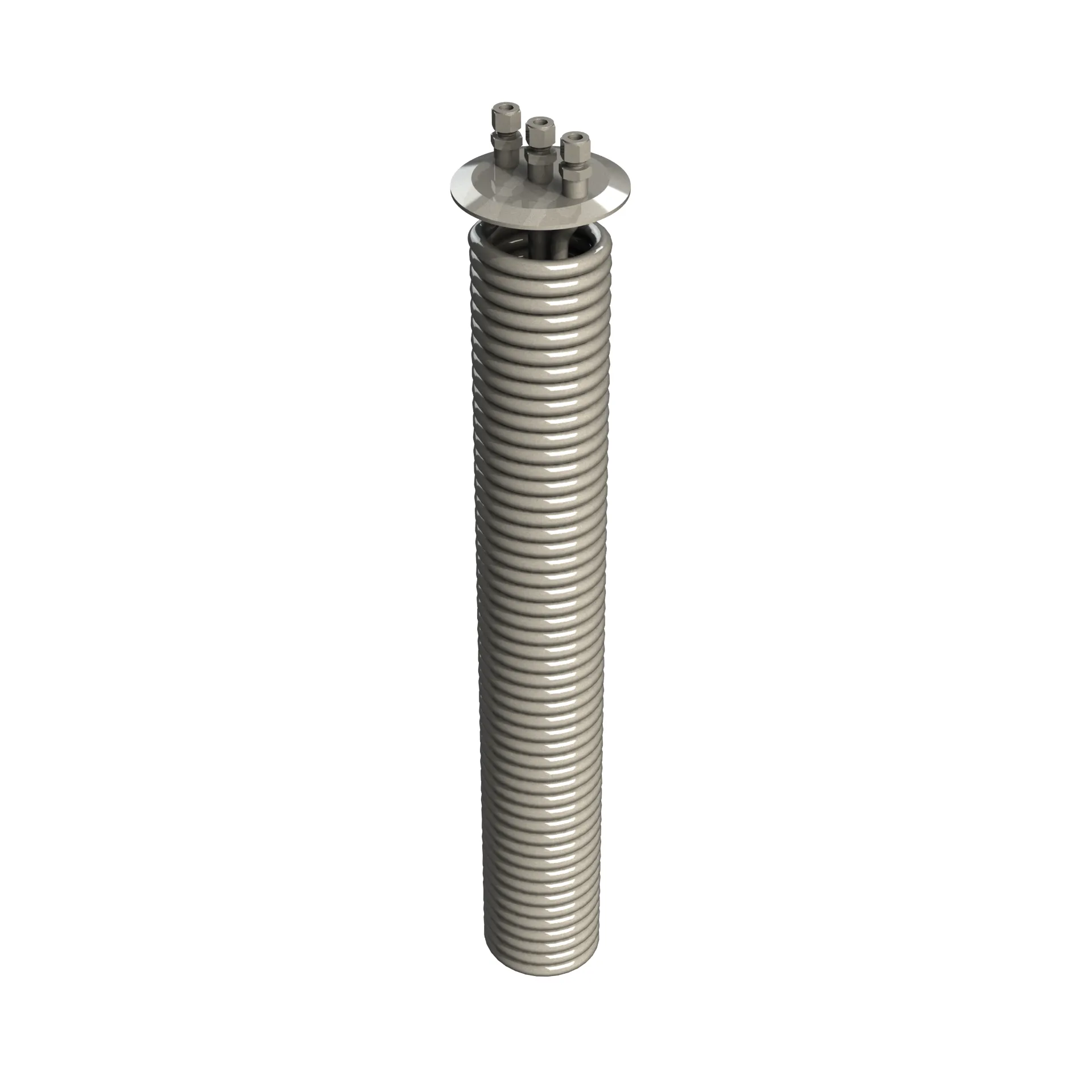

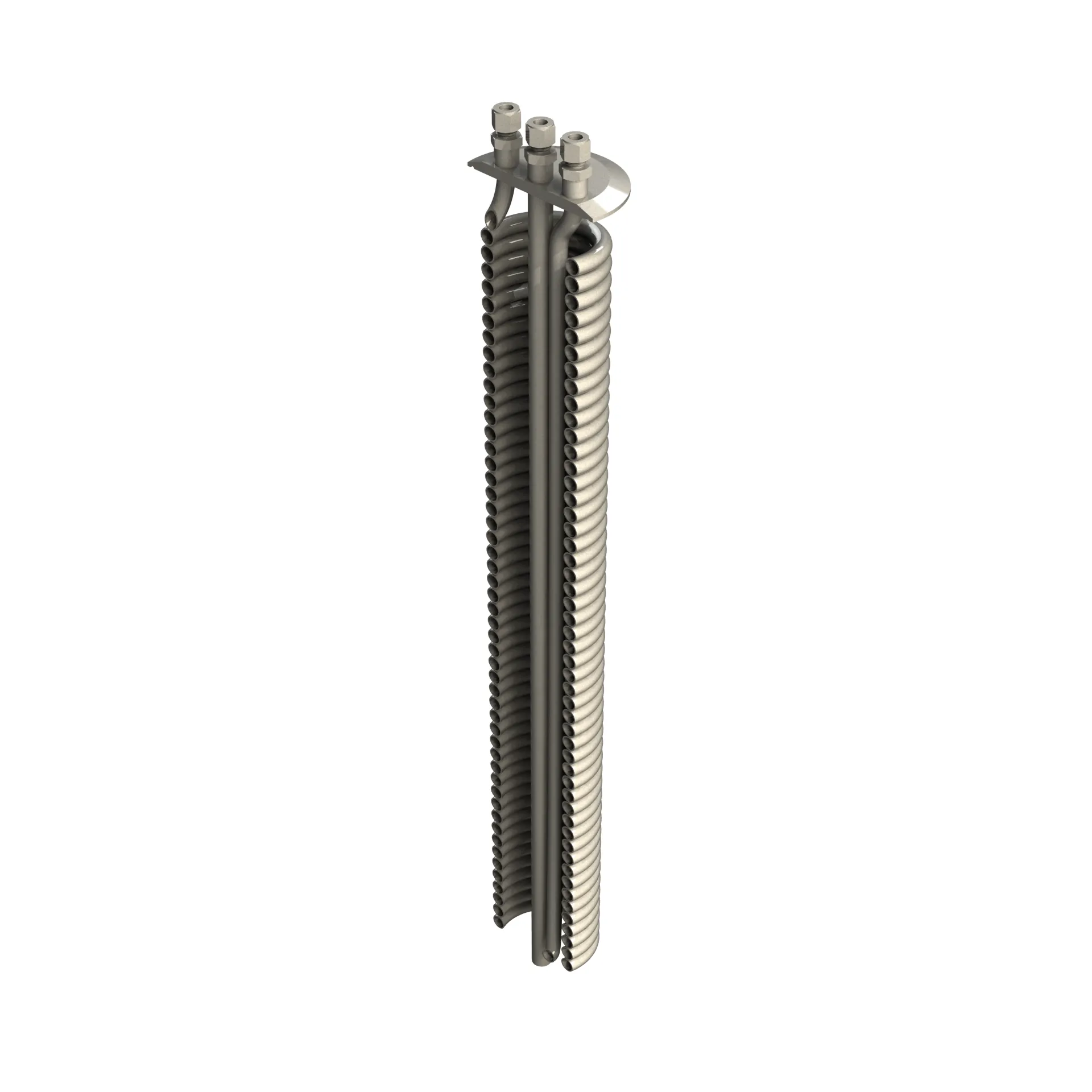

Condensing Coil Siphon Tube for Solvent Tank
Size Options Available:
50lb Jacketed Solvent Tank
50lb Solvent Tank
25lb Solvent Tank
Description:
This coil increases your control of solvent temperature/pressure
Circulate liquid/vapor in the coil while still allowing use of the dip tube
Comes with 3x 3/8" Compression Fittings on a 4" Tri-Clamp Flat Cap
Coil Tubing Diameter: 1/2"

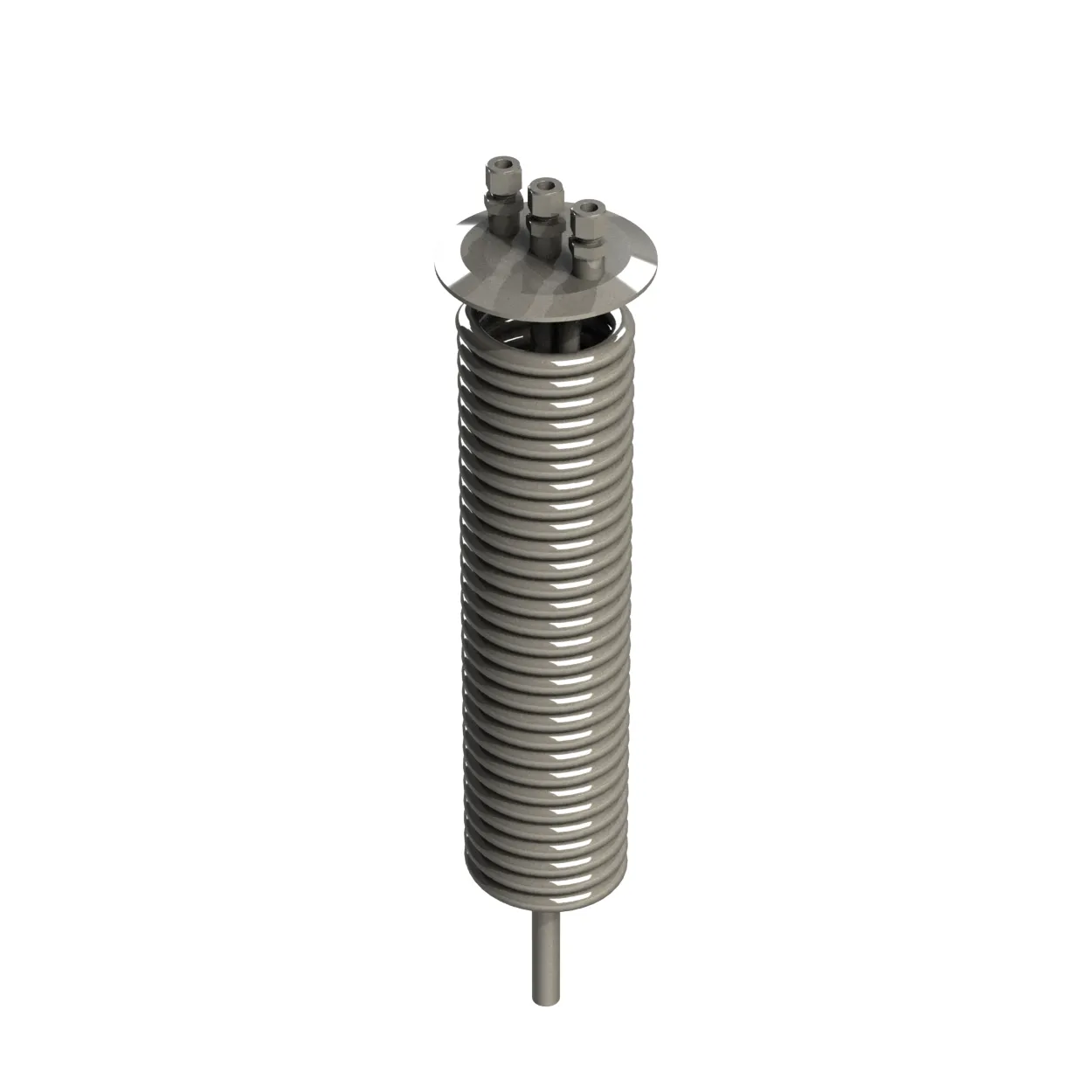

EXAMPLE OF 25LB SOLVENT TANK |
CONDENSING COIL DIPTUBE LENGTHS |
| *measured from under the flat cap to the end of the diptube |
| 50lb Jacketed Solvent Tank | 30 1/2" |
| 50lb Solvent Tank | 28 5/16" |
| 25lb Solvent Tank | 20 1/8" |
SOLVENT TANK DIPTUBE LENGTHS
|
| *measured from under the flat cap to the end of the diptube |
| 100lb Jacketed Solvent Tank | 48 3/16" |
| 100lb Solvent Tank | 48 3/16" |
| 50lb Jacketed Solvent Tank | 30 1/2" |
| 50lb Solvent Tank | 28 5/16" |
| 25lb Jacketed Solvent Tank | 13 3/16" |
| 25lb Solvent Tank | 20 1/8" |
| 15lb Solvent Tank | 22 7/16" |
| 10lb Jacketed Solvent Tank | 13 3/4" |
COIL PATH LENGTHS |
| 50LB = 43FT |
| 25LB = 25FT |
If you're buying for an older style tank or need a custom length cut, follow these instructions:
At checkout, in the Section "ADD A COMMENT TO YOUR ORDER?", please note the custom length needed. Thanks!
*DOES NOT FIT WITH OUR
